Turbine Electric Fans for Racing
TURBINE ELECTRIC FANS have a proven 40-year track record in BAJA racing. Their heavy duty rugged design will solve most cooling problems since they provide the highest CFM’s.

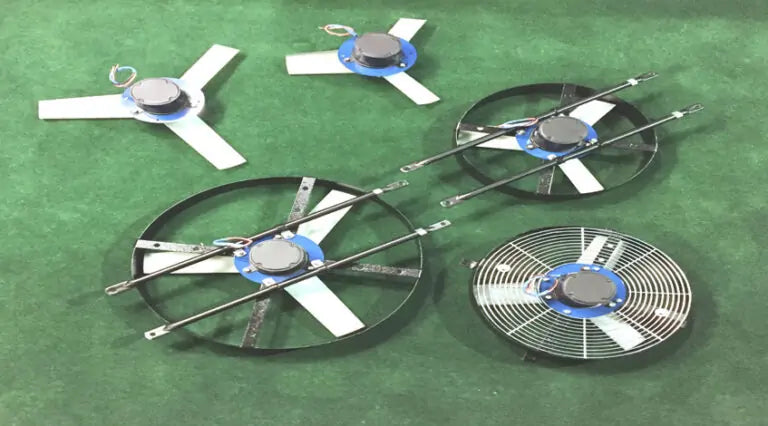

TOP ROW: (L) Model 3000-21 [21″ diameter]; (R) Model 3000-15 [15.75″ diameter]MIDDLE ROW: (L) Model 3000-21LT [21″ diameter]; (R) Model 3000-15JT [15.75″ diameter]BOTTOM ROW: Model 3000-15HD [15.75″ diameter]

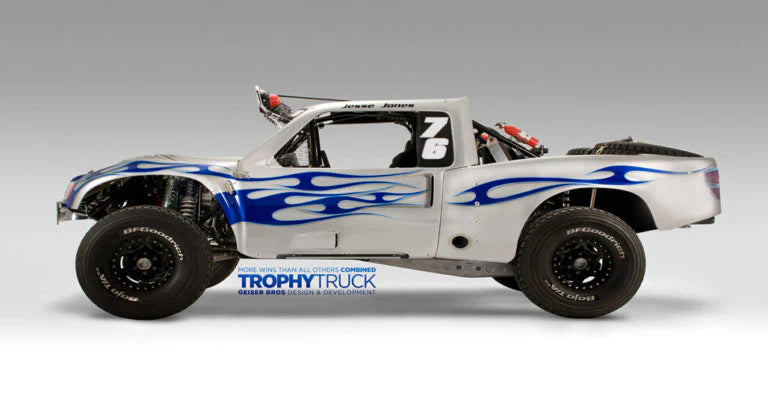

“A special thanks to Roger at Electric Fan Engineering for building the greatest fans that we use on all of our trophy trucks to win races and championships in BTD and Score.”
– Rick Geiser GEISER BROTHERS
Racing Fan Specifications
| Model # | Fan Diameter | CFM | Volts | Amps | Assembled Depth | Comments |
|---|---|---|---|---|---|---|
| 3000-15 | 15.75″ | 2000 | 12 | 16 | 5.25″ | Purchaser can reduce diameter |
| 3000-15HD | 15.75″ | 3400 | 12 | 22 | 5.25″ | |
| 3000-21 | 20.75″ | 4500 | 12 | 22 | 5.25″ | |
| 3000-15JT | 16.50″ | 2000 | 12 | 16 | 6.00″ | Complete assembly |
| 3000-21KT | 21.75″ | 4500 | 12 | 22 | 6.00″ | Complete assembly |
| [1] CFM at ‘0’ static pressure | ||||||
| [2] Also available for 24 volts |
