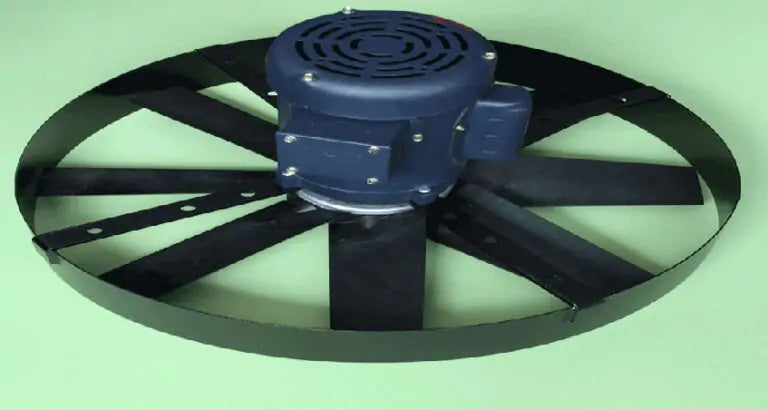

Turbine Electric Fans – AC and DC Brushless

SINGLE & 3-PHASE AC COOLING FANS

ELECTRIC FAN ENGINEERING now offers a complete selection of direct drive single and three-phase TURBINE ELECTRIC AC fan assemblies. Custom designed configurations up to 72″ diameter are ideal for HVAC industrial, commercial, and mass transit applications. They also can be used on other types of heat exchanger applications found on generators, pumps, stationary equipment and hybrid vehicles.

TURBINE ELECTRIC AC FANS can be powered by motors up to 70 hp (460 volt) and are capable of moving over 110,000 cfm. Compact assemblies include mounting frame, motor, fan blade, fan shroud and finger guard. Our modular designs will reduce both lead times and fabrication cost.

Request a Quote Call for Order - 800-338-4120

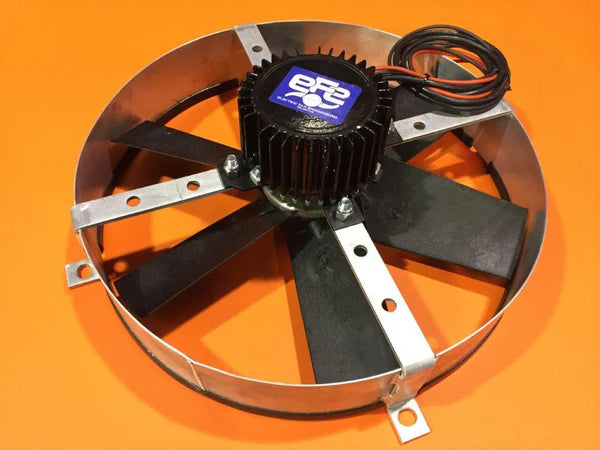

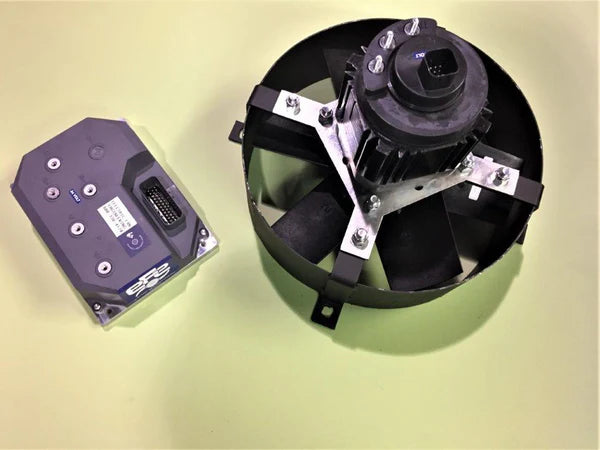

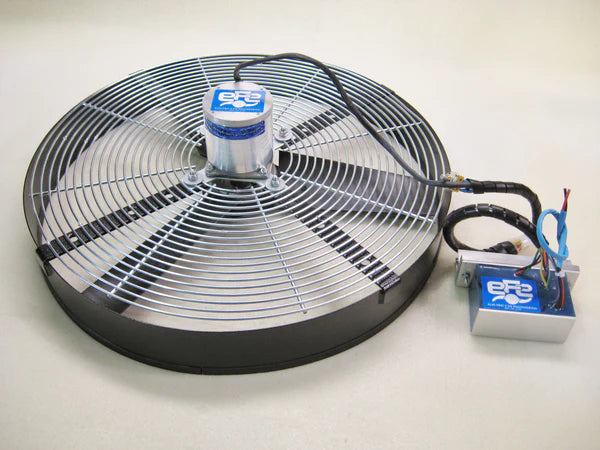

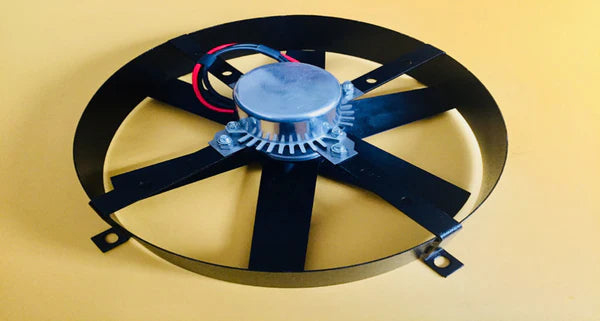

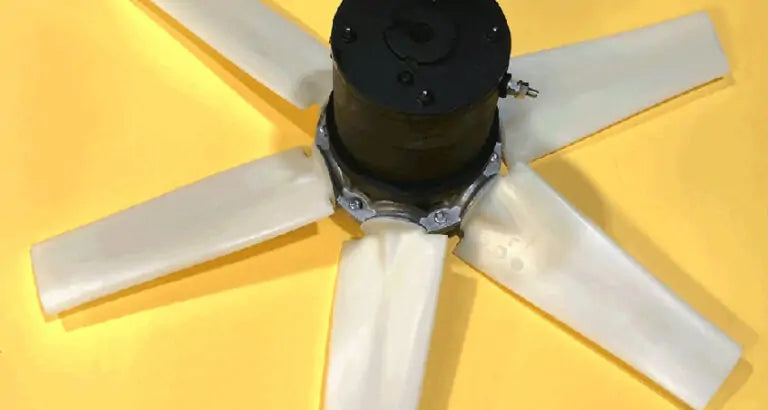

12-48 VOLT BRUSHLESS DC ELECTRIC COOLING FAN DRIVES

TURBINE ELECTRIC BRUSHLESS FAN DRIVES are high performance solid state assemblies that require little or no maintenance. Superior to other assemblies — more airflow, smaller in size and weight, easier to install.

AVAILABLE MOTOR VOLTAGES:

115/208-230/208-230/460 - Single or Three-Phase

FREQUENCY:
50 & 60 Hz

SIZES:
Up to 72″ Diameter

CONTACT US

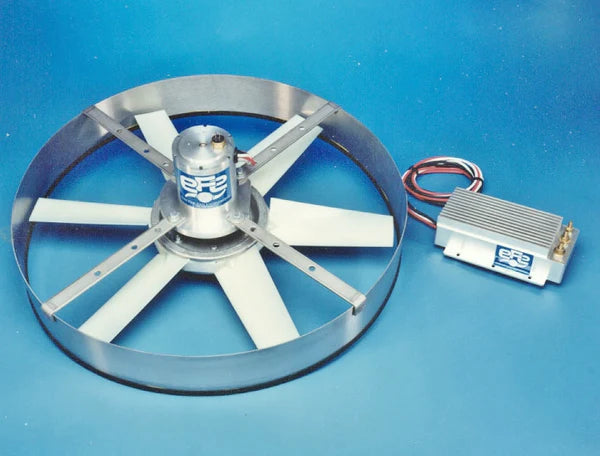

Contact our Sales Department at 800-338-4120 for more information about THERMAL STAR® fans.

Features

Brushless Design
12 to 48 volts
Motor Output up to 3 hp
Average Weight: 30 lbs.
Diameters up to 32″
Average Depth: 6.5″
Totally Enclosed
Rated up to 12,000 CFM’s
Optional adjustable speed control
External amplifier

Uses

Trucks
Buses
Off-Highway
Marine
Stationary
Refrigeration
Specialty Vehicles
Electronic Equipment

Cooling Applications

Fuel Cells
Radiators
Air Conditioning
Refrigeration
Heat Exchange
After Coolers
Oil Coolers
Ventilation
Exhaust

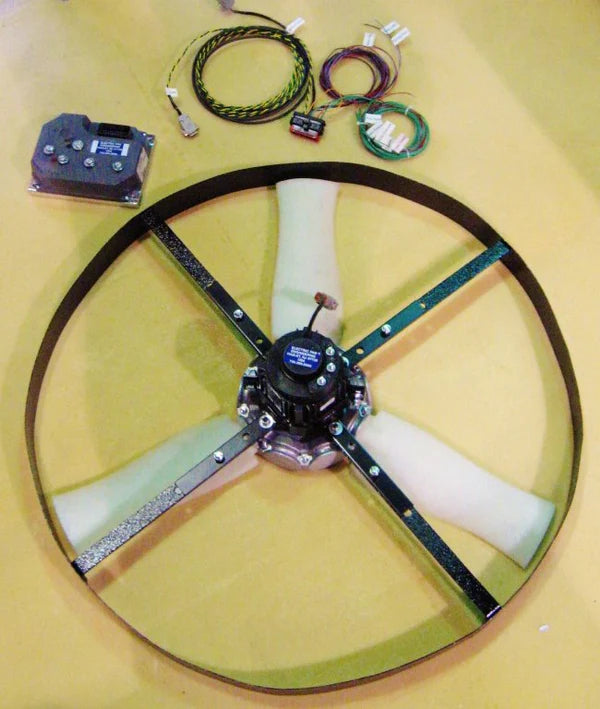

EASY INSTALLATION

All kits are semi-assembled and contain motor, amplifier, fan blade, steel fan shroud, and may be easily installed on most applications to the radiator frame by using our unique telescopic mounting hardware. Fan operation should be protected from personal and foreign objects.
