TEMPERATURE SWITCHES
DYNO-TRON THERMO-FAN sensors and relays will control the operation of a fan system by monitoring the temperature of water, oil or air. Available for 12- and 24-volt applications, the norm is open to close temp action switches will close on temperature rise sending a signal to a relay to start or stop a fan system. For accurate fan control and optimum performance, sensors should be installed in the return line of the cooling system. Other locations are not recommended. Sensors must be used with a relay. When ordering, specify 12- or 24-volt.
DYNO-TRON THERMO-FAN TEMPERATURE SWITCHES
NOTE: The opening and closing temperatures shown below have a tolerance of ±12 degrees.
| MODEL # | FITTING DIAMETER | CLOSE* | OPEN* | VOLTAGE(S) | MAXIMUM AMPERAGE |
|---|---|---|---|---|---|
| TCS-HDSS2-180(4) | 3/8" NPT | 185° F | 170° F | 12 | 50 |
| TCS-HDSS2-190(4) | 3/8" NPT | 195° F | 185° F | 12 | 50 |
[1] Also available for 24 volt applications

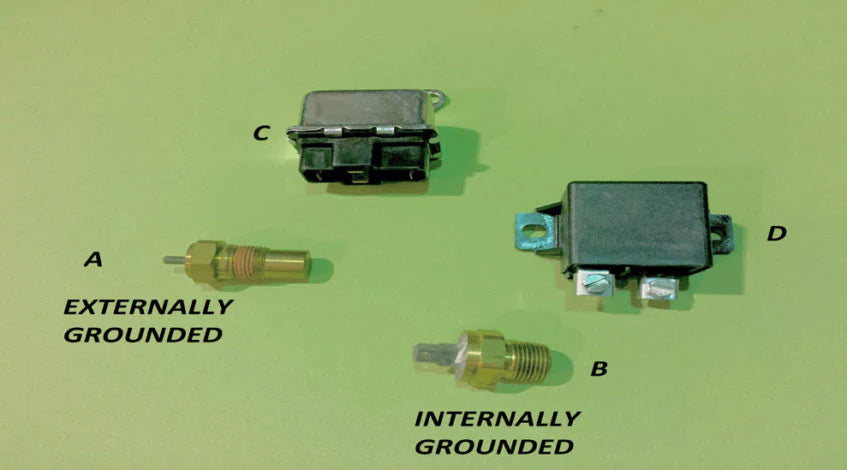

[2] Assembly contains items A & C
[3] Assembly contains items B & C
[4] Assembly contains items A, B & C
[5] Assembly contains items B & D
For other temperature settings, contact our Sales Department at 800-338-4120
PRESSURE SWITCHES
DYNO-TRON HD AC pressure switches and relays will condition the operation of a fan by monitoring high head pressure in an air conditioning system. When the AC pressure rises, the normally open switch closes, sending a signal to start a fan system.
| MODEL # | CLOSE | OPEN | VOLTAGE | FITTING DIAMETER |
|---|---|---|---|---|
| ACPC | 250 PSI | 200 PSI | 12 & 24 | 1/4" NPT |
