Turbine Electric Fans for Buses and Off-Highway

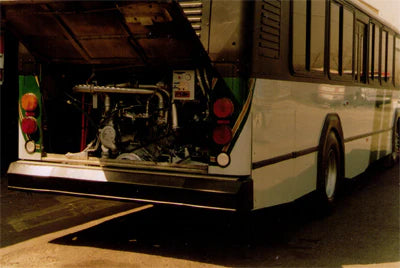

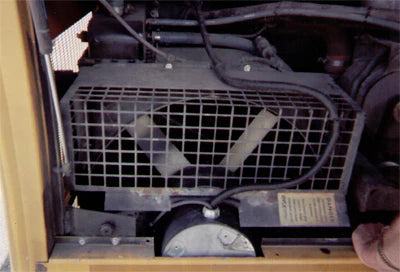

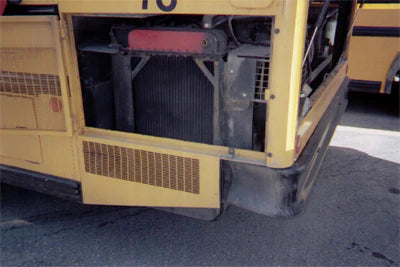

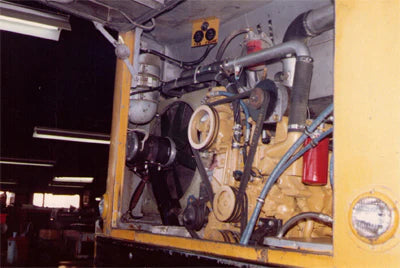

Series 5500,6000 or 6500 Turbine Electric Fans are designed to be used on difficult cooling applications found on off-road or transit buses having rear mounted engines up to 225 hp. They can be used on most engine, air conditioning or heat exchange applications.

All fan applications should be reviewed by our Technical Support Department.

Request a Quote

FEATURES

Motor Output up to 2.5 hp
CFM Ratings up to 12000
4 Pole Construction
12 and 24 volt applications
Permanent magnet
Totally enclosed

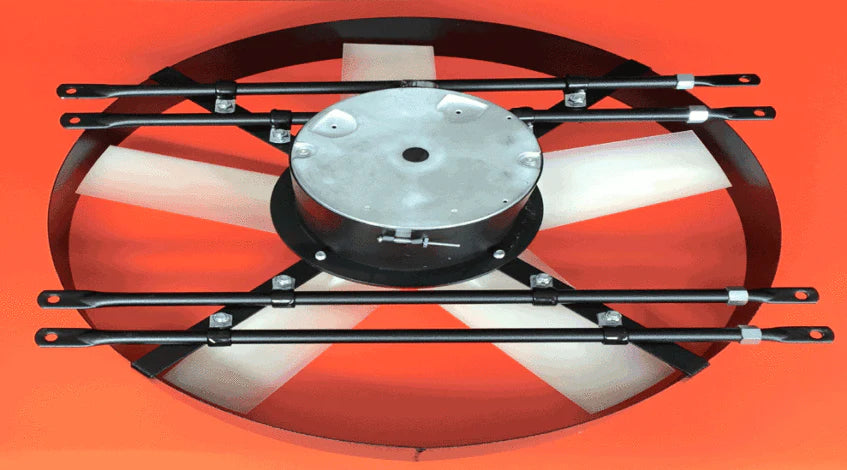

Telescopic Mounting (not available on Model 7500 and 7600)
Bi-Rotational
Polypropylene or Delrin fan blades
Continuous-duty cycle
Fan Diameter – up to 30″
Easy Brush Access

EASY INSTALLATION

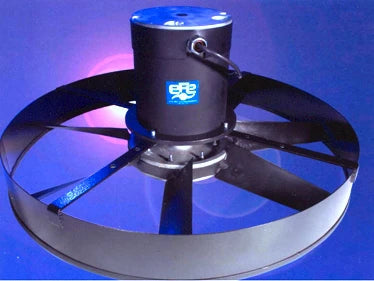

All kits are semi-assembled and contain motor, fan blade, steel fan shroud, and may be easily installed on most applications to the radiator frame by using our unique telescopic mounting hardware. On vehicles that experience excessive vibration, such as a bus, a foot mount bracket is provided on Models 7500 and 7600.

Specifications

Model #	A. Shroud Diameter	Volts	Maximum Amps	Maximum CFM	B	C	D	F [3] Closed	F [3] Open	Weight Lbs.
6000-21LT	21.75″	12	50	5500	4″	10.5″	6″	25″	40″	44
6500-21OT	21.75″	12	70	6200	4″	10.5″	8″	25″	40″	54
6500-24PT	24.75″	12	70	7000	4″	10.5″	8″	25″	40″	56
6500-26QT	26.00″	12	70	8800	4″	10.5″	8″	25″	40″	58
6500-28RT	28.00″	12	70	9000	4″	10.5″	8″	25″	40″	65
6500-30ST	30.00″	12	70	10125	4″	10.5″	8″	25″	40″	70
