Turbine Electric Fans for Over The Road Trucks & Tractors
For over 45 years, Turbine Electric high performance 12- & 24-volt cooling fans for over the road trucks and tractors are still the world’s largest commercial assemblies. Our advanced, single-fan technology offers a wide range of sizes up to 30″ dia., with air flow ratings up to 10,000 CFMS.

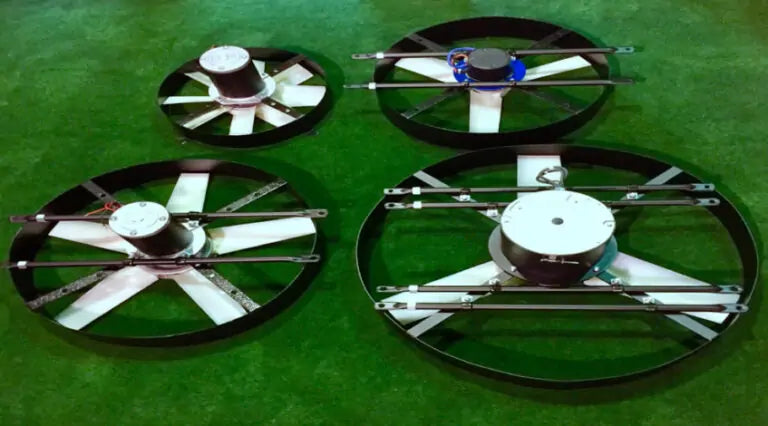

TOP ROW (L to R): Model 5500-15HD [16.5″]; Model 3000-21LT [21.75″]
BOTTOM ROW (L to R): Model 5500-24MT [24.5″]; Model 6500-30ST [30″]

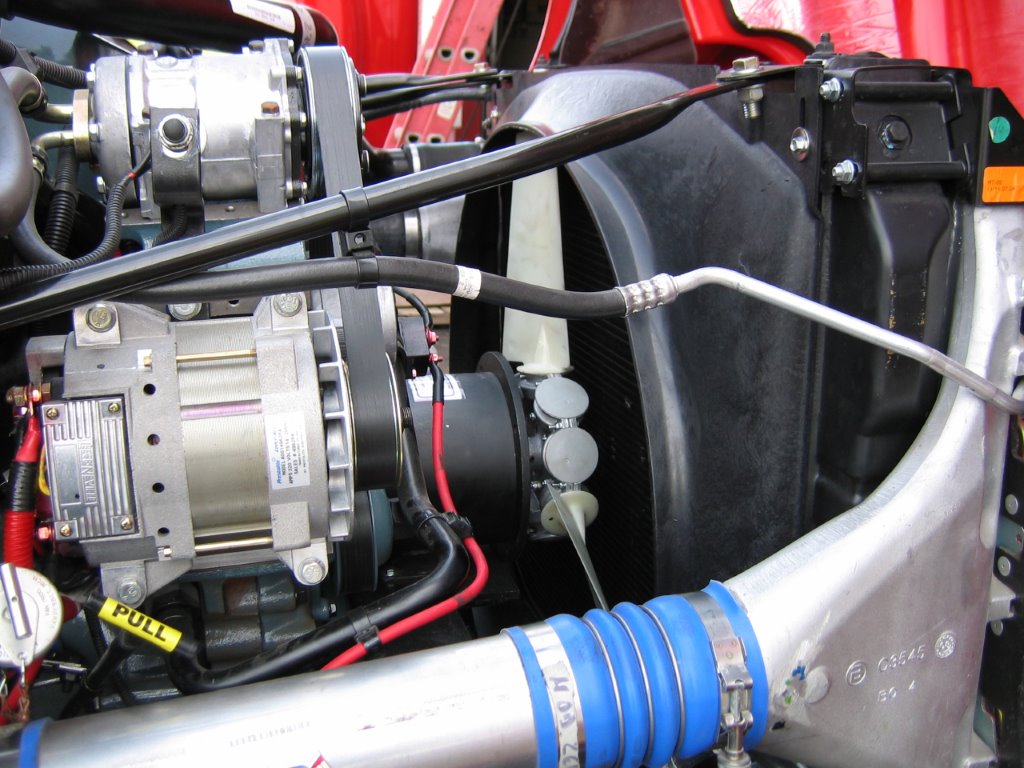

Most over-the-road trucks can replace the conventional belt-driven fan with a turbine electric fan.
FEATURES
- 4 Pole Construction
- 12 and 24 volt applications
- Permanent magnet
- Totally enclosed
- Telescopic mounting
- Bi-Rotational
- Polypropylene or Delrin blades
- Continuous-duty cycle
- Diameters – up to 29″
- CFM Ratings up to 10,125
- Motor Output up to 1.25 hp
- Easy Brush Access
EASY INSTALLATION
Most kits are fully assembled... NOTE: THE FAN MODELS RECOMMENDED BELOW ARE FOR VEHICLES MANUFACTURED BEFORE 2005
SPECIFICATIONS
| Model # | A. SHROUD DIA | VOLTS | MAX AMPS | MAX CFM | B | C | D | E CLOSED | E OPEN | WEIGHT LBS. |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000-15JT | 16.50″ | 12 | 18 | 3000 | 3″ | 6.75″ | 6.5″ | 25″ | 40″ | 16 |
| 3000-21KT | 21.75″ | 12 | 20 | 4000 | 3″ | 6.75″ | 6.5″ | 25″ | 40″ | 18 |
| 5500-21LT | 21.75″ | 12 (1) | 24 | 4500 | 3″ | 9.5″ | 4.8″ | 25″ | 40″ | 24 |
| 5500-24MT | 24.75″ | 12 (1) | 28 | 5800 | 4″ | 10.5″ | 4.8″ | 25″ | 40″ | 26 |
| 5500-26NT | 26.00″ | 12 (1) | 32 | 7400 | 4″ | 10.5″ | 4.8″ | 25″ | 40″ | 28 |
| 6000-21OT | 21.75″ | 12 (1) | 50 | 5500 | 4″ | 10.5″ | 6″ | 25″ | 40″ | 44 |
| 6500-21OT | 21.75″ | 12 (1) | 70 | 6200 | 4″ | 10.5″ | 8″ | 25″ | 40″ | 54 |
| 6500-24PT | 24.75″ | 12 (1) | 70 | 7000 | 4″ | 10.5″ | 8″ | 25″ | 40″ | 56 |
| 6500-26QT | 26.00″ | 12 (1) | 70 | 8800 | 4″ | 10.5″ | 8″ | 25″ | 40″ | 58 |
| 6500-28RT | 28.00″ | 12 (1) | 70 | 9000 | 4″ | 10.5″ | 8″ | 25″ | 40″ | 65 |
| 6500-30ST | 30.00″ | 12 (1) | 70 | 10125 | 4″ | 10.5″ | 8″ | 25″ | 40″ | 70 |
| (1) Also available for 24 volt applications. [2] CFM at ‘0’ Static Pressure [3] For horizontal mounting only. |
